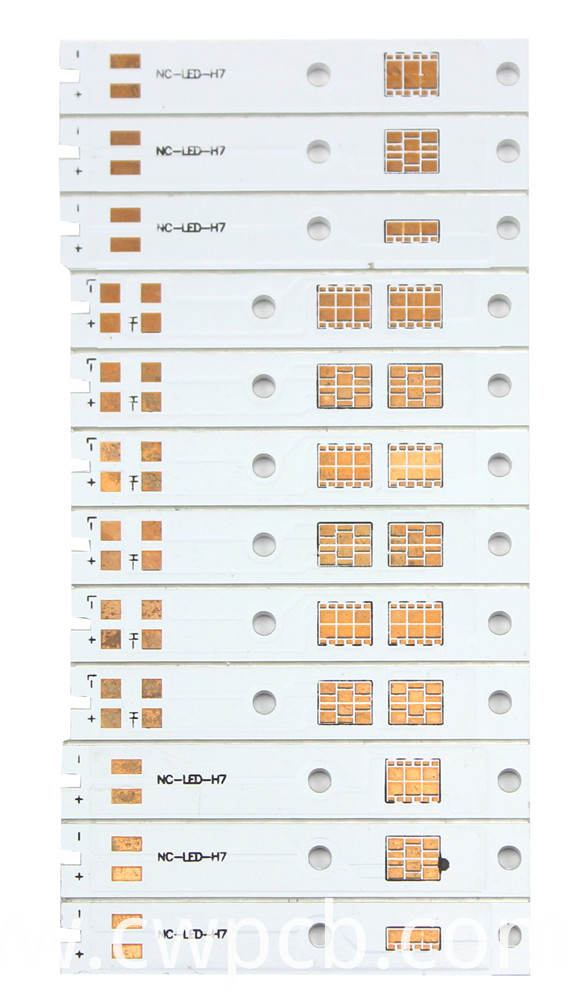

8.0W Automotive lamp graphene Alumium circuit board

Payment Type:
L/C,T/T,D/P,Money Gram,Western Union
Min. Order:
1 Piece/Pieces
Delivery Time:
8 Days
  • Product Description
Product Attributes

Model No.CW-005

StructureMetal Base Rigid PCB

Flame Retardant PropertiesV0

Base MaterialAluminum

Insulation MaterialsMetal Composite Materials

Supply Ability & Additional Informations


Place of Origin China

Supply Ability10000sqm/month

CertificateISO9001, ISO14001, UL, IATF16949

Payment TypeL/C,T/T,D/P,Money Gram,Western Union


Delivery Time8 Days

With the development of electronic products in the direction of “light, thin, short and small”, LED aluminum boards are also developing to high density and high difficulty. A large number of SMT and BGA PCBs appear, and customers should be led aluminum substrate manufacturers when mounting components to plug hole, mainly because:
1. Preventing short circuit of tin from the through hole through the component surface during over-wave soldering of the LED aluminum substrate;
2. Avoid flux remaining in the via hole;
3. After the surface mount and component assembly is completed, the PCB is vacuumed on the test machine to form a negative pressure:
4. Prevent the surface solder paste from flowing into the hole to cause solder joints, which affects the placement;
5. Prevent the soldering of the solder balls from over-wave soldering, causing a short circuit.

certification logo


Material: Aluminium

Layer: 1L

Copper thickness: 1OZ

Board thickness: 1.2mm

Surface Finishing: HASL-LF

Solder mask color: White

Solder mask brand: Taiyo

Thermal Conductivity: 8.0W/M.K


Aluminum circuit boards is a metal-based copper clad plate with good heat dissipation function. Generally, the single layer is composed of three-layer structure, which is a circuit layer (copper foil), an insulating layer and a metal base layer. Also used for high tech use is designed as double layers, the structure is circuit layer, insulation layer, aluminum base, insulation layer, circuit layer. A very small number of applications are multi-layer boards, which can be made of ordinary multi-layer boards combined with an insulating layer and an aluminum base.

Aluminum PCB characteristics
● Surface Mount Technology (SMT);
● Extremely efficient treatment of thermal diffusion in circuit design;
● Reduce product operating temperature, increase product power density and reliability, and extend product life;
● Reduce product size and reduce hardware and assembly costs;
● Replace the fragile ceramic substrate for better mechanical durability.

Aluminum PCB use:
Audio equipment
Input, output amplifiers, balanced amplifiers, audio amplifiers, preamplifiers, power amplifiers, etc.
Power supply equipment
Switching regulator, DC/AC converter, SW regulator, etc.
Communication electronic equipment
High frequency amplifier, filtering appliance, reporting circuit, etc.
Office automation equipment
Motor drive, etc.
Electronic regulator, ligniter, power controller, etc.
CPU board, floppy disk drive, power supply unit, etc.
Power module
Inverter, solid relay, rectifier bridge and so on.
● LED lighting
With the promotion of energy-saving lamps, various energy-saving and beautiful LED lamps have been well received by the market, and aluminum PCB used for LED lamps have also begun to be applied on a large scale.

1 2mm 1oz 8w Automotive Lamp Graphene Al Board1 2mm 1oz 8w Automotive Lamp Graphene Al Circuit__________________________________________________________________________________________________________________________________________

ChuangYing Electronics
FOUR Advantages Quality with promise
More than 15 years Team Pursuit of first-class quality

1, About the factory--More than 15 years industry experience: Self-built factory, 15 years of focus on circuit board manufacturing.

☆ Flip Aluminium Pcb: The share of Aluminum industry more than 45%, service and quality have won the praise of customers.

☆ Advanced equipment: PVC plating line, CNC V-CUT machine, Dongtai high speed drilling machine, high speed flying probe testing machine, microscope, copper foil tensile tester, ion pollution degree detector.

2, Top technical team - fast delivery, professional service

50 professional and technical people with more than 10 years of PCB experience have rich experience in various industry standards and process quality requirements.

☆ Provide after-sales technical support, quickly respond to bad feedback, solve customer's difficult problems

3, Certifications - UL, IO9001:2015, ISO14001:2015, IATF16949

All products undergo strict SGS testing and meet ROHS requirements

Implement TQM quality management and 6σ management mode, continuous improvement, good rate 99%

Quality control seniors are skilled in IATF16949, QS9000 requirements,and have their internal auditor qualification certificate

4.Work with well-known companies - trustworthy PCB manufacturers

Over the years, has business contacts with many well-known companies such as BYD, Huawei, Schneider, and Siemens etc., and has maintained long-term supply relationships with these industry benchmarking companies.

The products are exported to Europe, America, Japan, Middle East, Philippines and other overseas markets, and are well received and trusted by customers.

Looking for ideal Automotive Lamp Graphene Al PCB Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the 8.0W 1.2mm Thickness Circuit Board are quality guaranteed. We are China Origin Factory of Car Light Printed Circuit Boards. If you have any question, please feel free to contact us.

Product Categories : MC PCB > Automotive Circuit Board
