Chuangying Electronics Co.,Ltd

Electric energy printed circuit boards

Payment Type:
L/C,T/T,D/P,Money Gram,Western Union
Min. Order:
1 Piece/Pieces
Delivery Time:
8 Days
  • Product Description
Product Attributes

Model No.CW-105

StructureDouble-Sided Rigid PCB


ApplicationConsumer Electronics

Flame Retardant PropertiesV0

Supply Ability & Additional Informations


Place of Origin China

Supply Ability10000sqm/month

CertificateISO9001, ISO14001, UL, IATF16949

Payment TypeL/C,T/T,D/P,Money Gram,Western Union


Delivery Time8 Days

New energy (NE): Also known as unconventional energy. Refers to all forms of energy other than traditional energy. Refers to energy sources that are just beginning to be developed or are being actively researched, such as solar energy, geothermal energy, wind energy, ocean energy, biomass energy, and nuclear fusion energy.

New energy industry develop very fast during the past years and also in the future as the government promotes the application of new energy sources, especially new energy vehicles. Affected by environmental protection pressure, the problem of traditional automobile exhaust pollution has been paid more and more attention. The main source of power for new energy vehicles is electric energy. Compared with traditional fossil fuel vehicles, electric vehicles have the advantages of zero emissions, zero pollution and high energy conversion efficiency.

certification logo

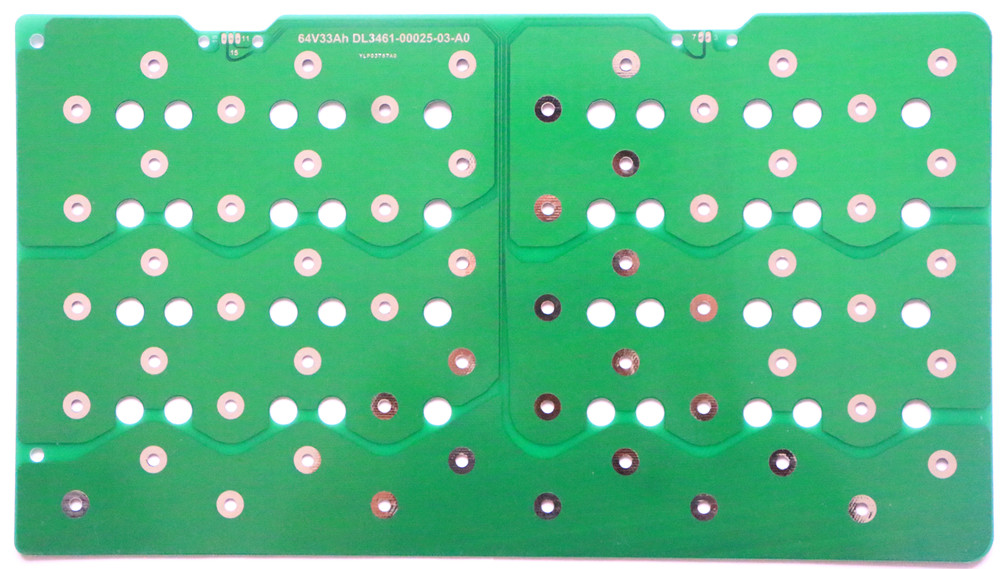

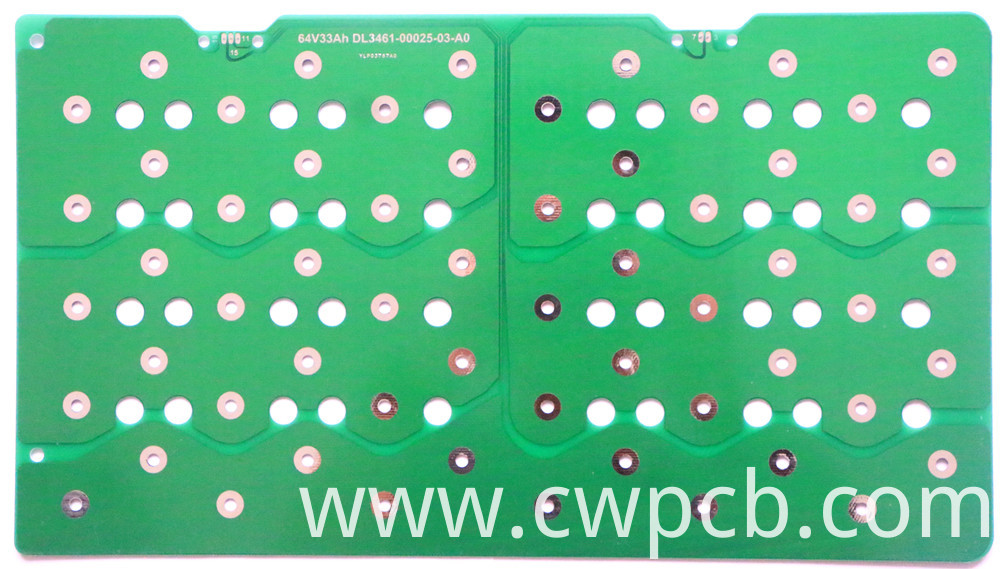

Material: FR4

Layer: 1L

Copper thickness: 1OZ

Board thickness: 1.2mm

Surface Finishing: LF HASL

Solder mask color: Green

Silkscreen color: None

Describe: For new energy industry

1 2mm 1 0oz Lf Hasl New Energy1 2mm 1 0oz Lf Hasl New Energy Circuit_________________________________________________________________________________________________

Printed circuit boards abbreviation as PCB. A conductive pattern which is formed on a dielectric material in a predetermined design to form a printed circuit, a printed component, or a combination of the two is generally referred to as a printed circuit. And a conductive pattern that provides electrical connection between components on an insulating substrate, called printed circuits.

PCB characteristics
● High density. For decades, the high density of printed boards has grown with the increased integration of integrated circuits and advances in mounting technology.
● High reliability. Through a series of inspections, tests and aging tests, the PCB can be reliably operated for a long period of time (usually 20 years).
● Designability. For the various performances of PCB (electrical, physical, chemical, mechanical, etc.), the design of printed boards can be realized through design standardization and standardization, with short time and high efficiency.
● Productivity. With modern management, it can carry out standardization, scale (quantity), automation and other production to ensure product quality consistency.
● Testability. Established relatively complete test methods, test standards, various test equipment and instruments to detect and identify PCB product qualification and service life.

● Assemblyability. PCB products not only facilitate the standardized assembly of various components, but also can be automated, large-scale mass production. At the same time, the PCB and various component assembly components can be assembled to form larger components and systems up to the complete machine.

● Maintainability. Since PCB products and various component assembly components are produced in a standardized design and scale, these components are also standardized. Therefore, once the system fails, it can be replaced quickly, conveniently and flexibly, and the system can be quickly restored. Of course, you can say more about it. Such as miniaturization and weight reduction of the system, high-speed signal transmission, etc.


ChuangYing Electronics
FOUR Advantages Quality with promise
More than 15 years Team Pursuit of first-class quality

1, About the factory--More than 15 years industry experience: Self-built factory, 15 years of focus on circuit board manufacturing.

☆ Flip Aluminium Pcb: The share of Aluminum industry more than 45%, service and quality have won the praise of customers.

☆ Advanced equipment: PVC plating line, CNC V-CUT machine, Dongtai high speed drilling machine, high speed flying probe testing machine, microscope, copper foil tensile tester, ion pollution degree detector.

2, Top technical team - fast delivery, professional service

50 professional and technical people with more than 10 years of PCB experience have rich experience in various industry standards and process quality requirements.

☆ Provide after-sales technical support, quickly respond to bad feedback, solve customer's difficult problems

3, Certifications - UL, IO9001:2015, ISO14001:2015, IATF16949

All products undergo strict SGS testing and meet ROHS requirements

Implement TQM quality management and 6σ management mode, continuous improvement, good rate 99%

Quality control seniors are skilled in IATF16949, QS9000 requirements,and have their internal auditor qualification certificate

4.Work with well-known companies - trustworthy PCB manufacturers

Over the years, has business contacts with many well-known companies such as BYD, Huawei, Schneider, and Siemens etc., and has maintained long-term supply relationships with these industry benchmarking companies.

The products are exported to Europe, America, Japan, Middle East, Philippines and other overseas markets, and are well received and trusted by customers.

Looking for ideal Zero Emissions New Energy PCB Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Environmental Protection New Industry Boards are quality guaranteed. We are China Origin Factory of High Energy Conversion Efficiency Circuit Board. If you have any question, please feel free to contact us.

Product Categories : FR4 PCB > Power Circuit Board
